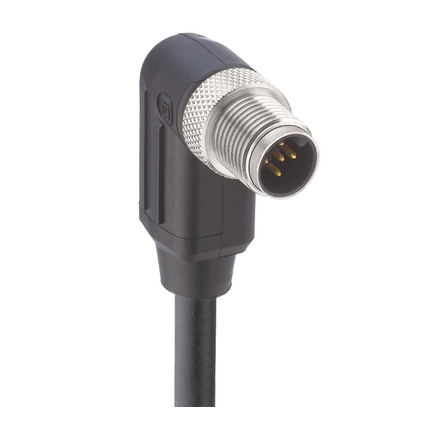

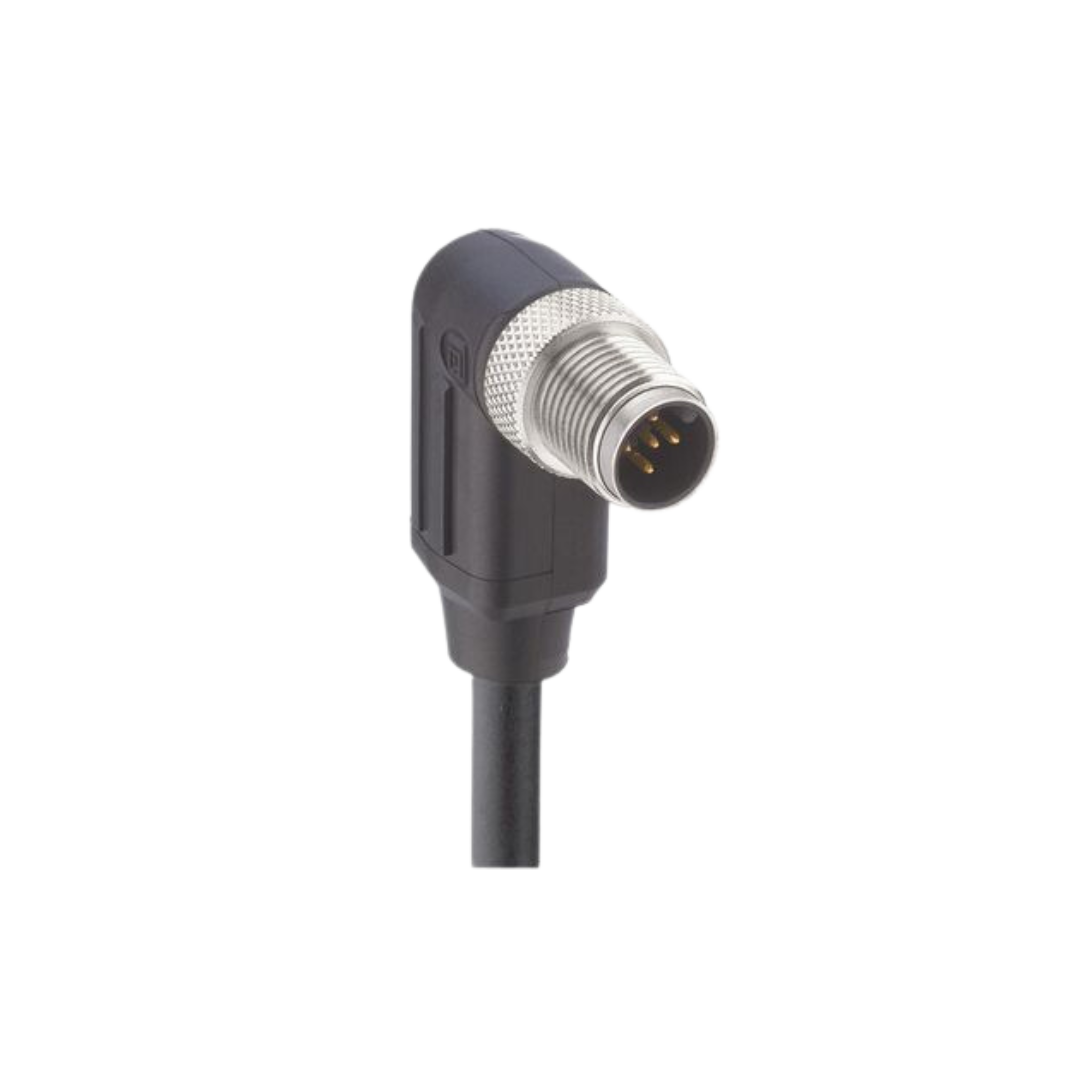

M12 A-Coded Right-Angled Male PUR Black CANopen/DeviceNet

The CANopen / DeviceNet Data Single-Ended Cordset is a versatile and reliable connector solution designed for various industrial applications. Featuring a 5-pin male M12 angled connector, this cordset is A-coded and supports up to 50 V AC / 60 V DC and a current rating of 4 A. The cordset is equipped with a robust black PUR cable comprising 4 wires: 2x0.25 mm² for data transmission and 2x0.34 mm² for power supply. Benefits of this cordset include superior chemical and oil resistance, good flexibility in cold conditions, and enhanced resistance to microbes and hydrolysis. The cordset is also free of PVC, silicone, and other harmful materials, ensuring safety and compliance with environmental standards. With a rated operational temperature ranging from -40 °C to +80 °C, this product is ideal for harsh and demanding environments. This cordset is suitable for CANopen and DeviceNet data transmission and can be utilized in various automation and control systems. Its high IP ratings (IP65, IP67, IP68, and IP69K) make it ideal for applications requiring rugged and durable connections that can withstand challenging conditions.

The CANopen / DeviceNet Data Single-Ended Cordset is a high-quality wiring assembly designed for reliable data transmission. Featuring an M12 standard angled male connector with 5 pins and A-coding, this cordset is built to handle operating voltages of 50 V AC or 60 V DC and a current rating of up to 4 amperes. The robust black body houses a PUR black cable that contains four wires, specifically configured with data wires (2x0.25 mm²) and power wires (2x0.34 mm²). This design ensures efficient data and power transmission while maintaining the overall durability and flexibility of the cordset. The cordset's shielding and materials provide resistance to chemicals, oils, and other harsh environmental factors, making it suitable for industrial applications. Its IP65, IP67, IP68, and IP69K ratings confirm its high level of protection against dust and water ingress. Additionally, the cordset is compliant with various international standards, including IEC 61076-2-101, ensuring its compatibility and safety in diverse settings.

The CANopen / DeviceNet Data Single-Ended Cordset is a robust and reliable solution for data transmission in industrial environments. It features an M12 Standard male connector, angled with 5 pins and A-coded. The connector is designed with a black body that can handle operating voltages of up to 50 V AC / 60 V DC and a current rating of 4 A. The cordset is equipped with a durable PUR black cable, comprising 4 wires (Data: 2x0.25 mm², Power: 2x0.34 mm²), ensuring secure data and power transmission. One of the key benefits of this cordset is its high resistance to harsh environmental conditions. It features a protection degree of IP65, IP67, IP68 (1 m / 24 h), IP69K, making it suitable for use in challenging conditions. The cordset also has a high insulation resistance of over 10^9 Ohm and a contact resistance of less than 10 mOhm, ensuring reliable connections. The robust design includes a TPU molded body and contact bearer materials that comply with UL 94 HB flammability standards. This cordset is particularly useful in applications requiring reliable CANopen or DeviceNet data transmission. It's ideal for automation systems, factory machinery, and other industrial equipment. The cable is designed for excellent microbes and hydrolysis resistance, good chemical and oil resistance, and is mainly plasticizer diffusion free. The cordset excludes hazardous materials, PVC, and silicone, ensuring a safer working environment.

The CANopen / DeviceNet Data Single-Ended Cordset is an industry-standard M12 connector featuring a male, angled, 5-pin, A-coded design. It is built with a robust black body and is engineered to support voltages of up to 50 V AC / 60 V DC, with a maximum current rating of 4 A. The cordset features a PUR black cable that has four wires, comprising 2x0.25 mm² for data and 2x0.34 mm² for power. This configuration is designed to deliver reliable and efficient data transmission and power delivery in a variety of industrial applications.
