M12 A-Coded Female With LED PVC Orange F&B
PRKT/LED F 4-07/2 M

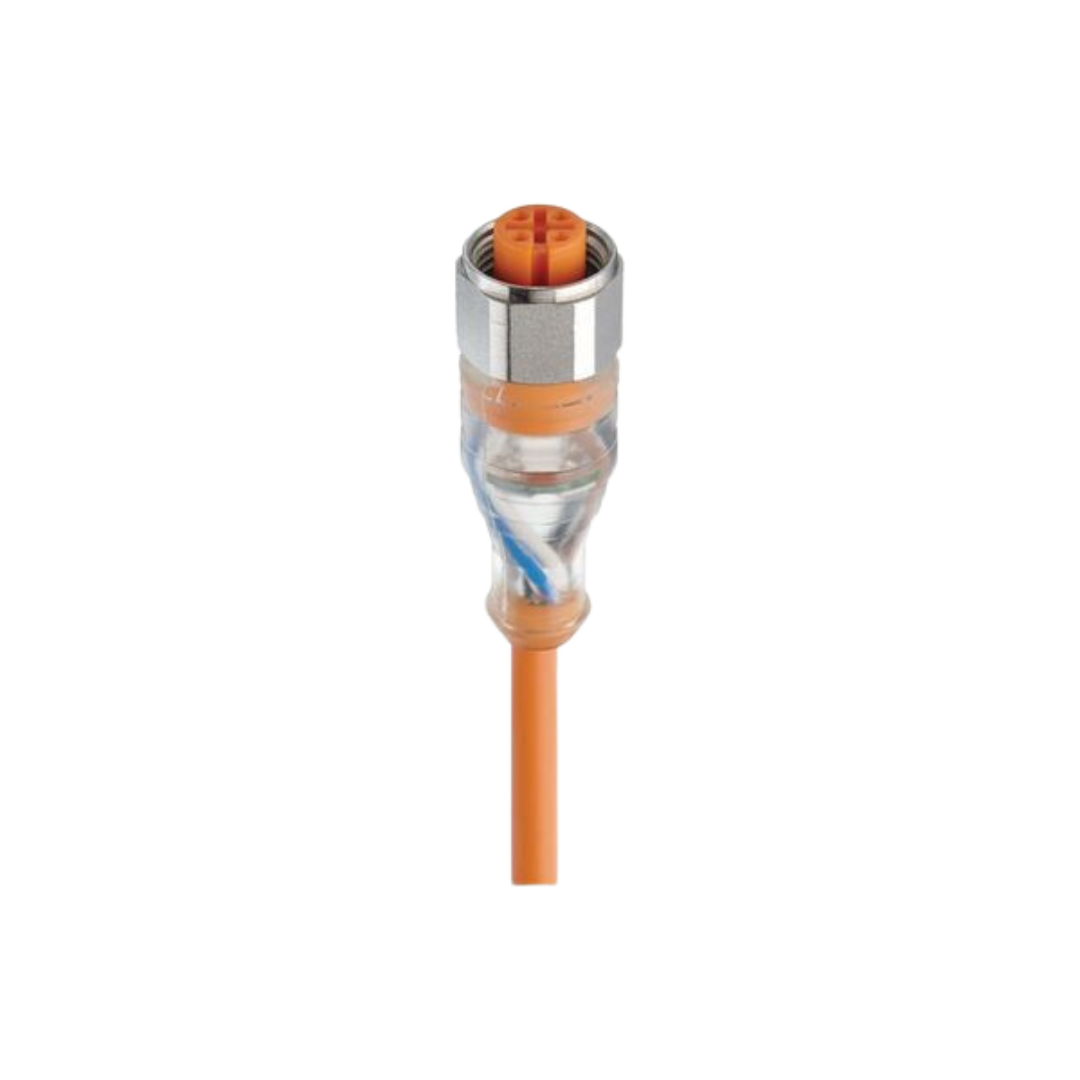

M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a high-quality component designed for industrial and automation applications. This cordset features a female, straight 4-pin A-coded connector, operating at 10-30 V DC and rated for 4 A current. Its transparent body and integrated 2xLEDs (PNP) indicators ensure easy status monitoring. The attached orange PVC cable has four wires, each with a 0.25 mm² conductor size, offering excellent durability and reliable performance in harsh environments. Compatible with rated voltages of up to 30 V, it boasts a sturdy stainless steel coupling nut and is designed to meet IEC 61076-2-101 standards.
€36.39
per item
