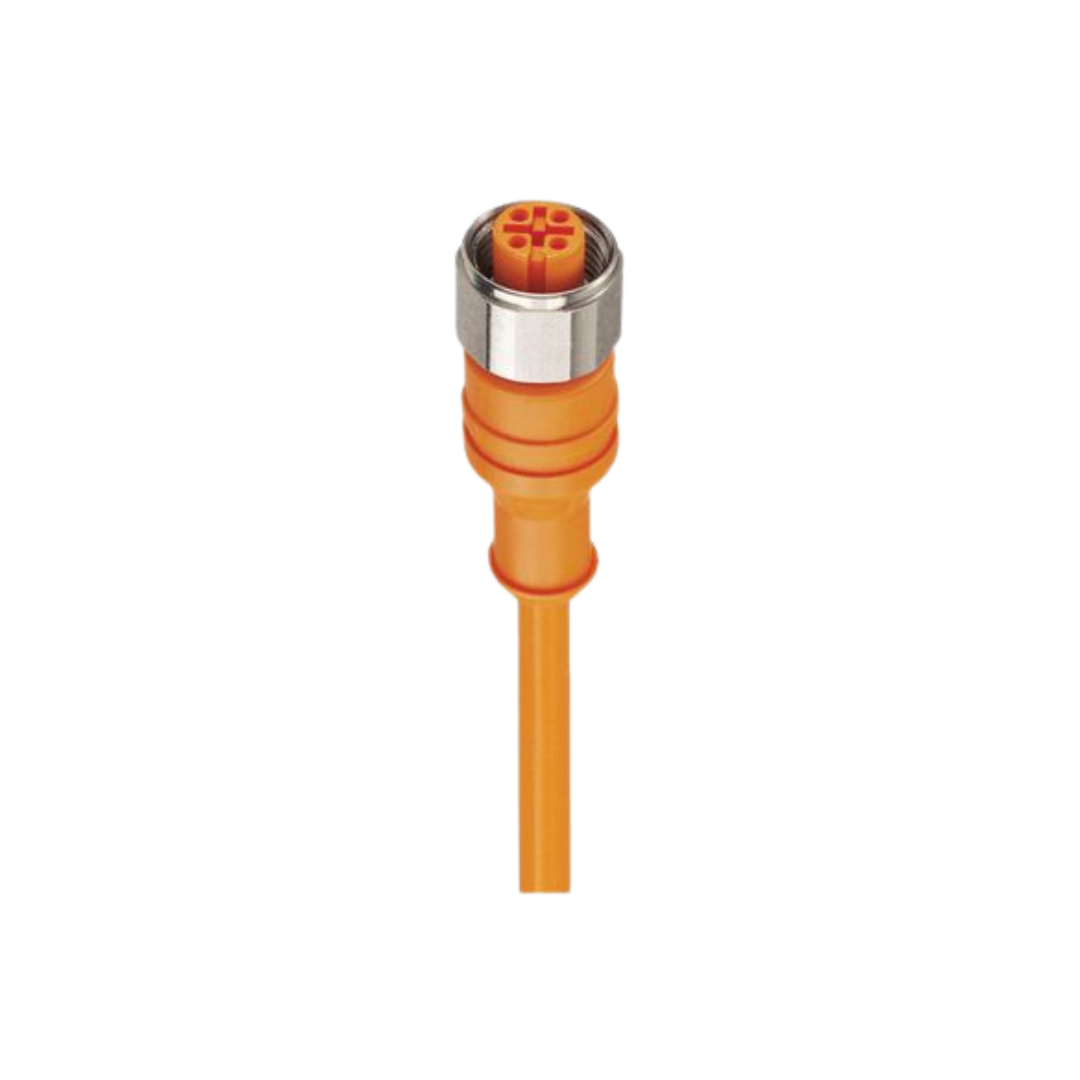

M12 A-Coded Female PVC Orange F&B

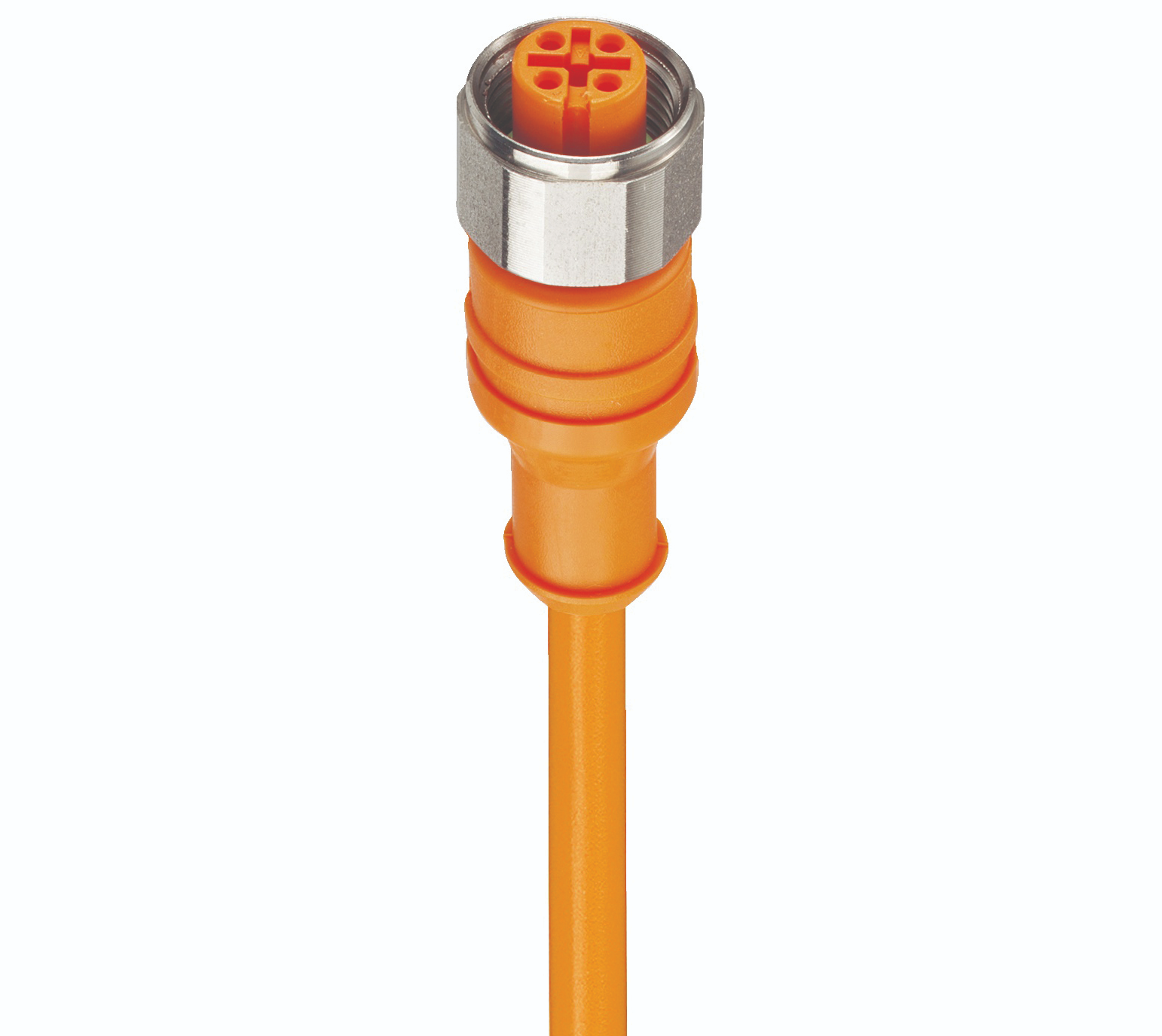

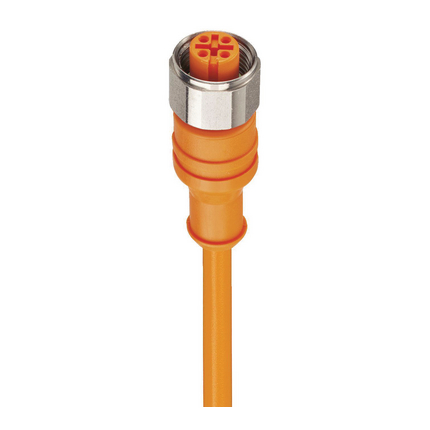

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a highly reliable connector designed for compatibility with industrial automation systems. Featuring a female, straight, 4-pin, A-coded connector with an orange body, it is capable of operating at 230 V AC/DC and carrying a current of up to 4 A. The cordset includes a durable PVC orange cable with 4 wires and a cross-sectional area of 0.25 mm², ensuring stable and efficient signal transmission in demanding environments. This cordset offers several advantages, including robust construction with high-quality materials such as stainless steel for the coupling nut and EPDM for the O-ring, providing enhanced durability and resistance to environmental stresses. It has excellent electrical performance with minimal contact resistance and high insulation resistance, ensuring reliable and consistent connections over its lifespan. Furthermore, the product is RoHS compliant, guaranteeing adherence to environmental and safety standards. Ideal for use in sensor and actuator connections within manufacturing lines, robotics, and automated systems, this single-ended cordset simplifies installation and maintenance. Its compact and efficient design makes it suitable for various industrial applications where reliable and secure electrical connections are crucial. With additional IP65 and IP67 protection ratings, it is well-suited for harsh industrial environments where moisture, dust, and vibrations are present.

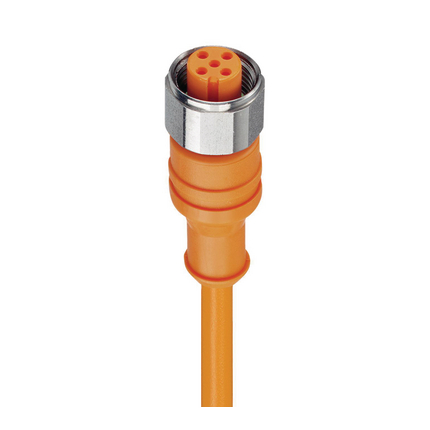

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a reliable and essential component for sensor and actuator applications. This cordset features a straight, female, 5-pin, A-coded connector housed in a durable orange body. It is suitable for operating voltages of 50 V AC and 60 V DC, with a current rating of 4A. The cordset is built with a rugged PVC orange cable, consisting of 5 wires with a conductor size of 0.34 mm², ensuring high performance and longevity even in demanding environments. The cordset is unshielded and designed with a coupling nut for secure attachment, meeting the IEC 61076-2-101 standard. With an IP65/IP67 rating, it guarantees substantial protection against dust and water ingress, making it ideal for industrial applications. Operating temperatures for the cable range from -40 °C to +80 °C for fixed installation, ensuring adaptability to various environmental conditions.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a female, straight connector featuring a robust orange PVC body. It is equipped with a 5-pin configuration that is A-coded, supporting a voltage rating of 50 V AC / 60 V DC and a current rating of 4 A. This cordset includes an orange PVC cable with 5 wires of 0.34 mm², ensuring reliable performance. The connector is designed to meet IEC 61076-2-101 standards, boasting an IP65/IP67 protection rating, making it resilient against dust and water ingress. Its unshielded build with stainless steel coupling nut provides a secure connection, ideal for industrial environments. Key applications include connecting sensors and actuators in automation systems, ensuring dependable signal transmission even in challenging conditions.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for industrial automation applications. This cordset features a female, straight connector with 5 pins and A-coding, ensuring reliable connections in a range of environments. It operates at 50 V AC / 60 V DC with a rated current of 4 A. The durable PVC orange cable has 5 wires with a conductor size of 0.34 mm², suitable for various sensor and actuator connections. Benefits: 1. Reliable and robust connection suitable for industrial environments. 2. High flexibility due to its PVC material that ensures durability and longevity. 3. Wide operating temperature range makes it suitable for multiple applications. Applications: Ideal for use in automation and control systems, especially where consistent performance is crucial. Suitable for sensors and actuators in factory automation, robotics, and machine engineering, providing a dependable interface for high-demand electrical connections.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a robust connector solution designed for reliable performance in industrial applications. This female, straight connector features 4 pins and A-coding, ensuring secure signal transmission for sensor and actuator integration. With a high-grade orange PVC body, it provides an eye-catching, durable, and resistant connectivity interface. The cordset supports a rated voltage of 230 V AC/DC and a current rating of 4 A, suitable for a variety of high-demand electrical applications. The attached orange PVC cable, containing four wires of 0.25 mm² each, ensures flexible and secure connections. It meets the IEC 61076-2-101 design standard and offers IP65 and IP67 protection against dust and water intrusion, making it ideal for harsh environments. The benefits of this cordset include high electrical performance with rated impulse voltage of 2.5 kV and low contact resistance of ≤ 10 mOhm. The insulation resistance is highly robust, offering greater than 10^9 Ohm, and can handle mating cycles up to 100. With its wide operating temperature range from -25°C to +50°C, its versatile design is suitable for various industrial settings. Applications of this M12 F&B (PVC) Sensor/Actuator Cordset include use in automation systems, sensor and actuator connections, and factory machinery setups where reliable power and signal transmission is critical. The cordset also boasts good chemical and oil resistance, extending its operational lifespan in challenging industrial environments.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a high-quality connection solution ideal for industrial automation applications. It features a straight, 4-pin, A-coded, female connector with an orange body. The cable is a robust orange PVC with four 0.25 mm² wires, rated for 230 V AC/DC and 4 A maximum current. The connector ensures secure connections thanks to its coupling nut attachment and stainless steel construction. With an IP65/67 rating, it is protected against dust and water ingress, making it suitable for harsh environments. The product is compliant with IEC 61076-2-101 standards, ensuring reliable performance.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for various sensor and actuator applications. Featuring a female, straight connector with 4 pins and A-coding, it is suitable for use in environments that require up to 230 V AC/DC and 4A current. The orange PVC cable offers robustness and flexibility, with a conductor size of 0.25 mm² and 4 wires. With an IP65 and IP67 rating when correctly mounted, this cordset provides reliable operation in harsh conditions. Furthermore, it adheres to IEC 61076-2-101 design standards and has good chemical and oil resistance, enhancing its durability in industrial environments.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a reliable and high-performance component designed for industrial automation applications. This cordset features a female, straight connector with 4 pins, and is A-coded for secure and firm connections. Encased in a robust PVC orange cable, it ensures optimal insulation and durability, making it suitable for various environmental conditions. The connector meets IEC 61076-2-101 standards and supports an operational voltage of 230 V AC/DC with a rated current of 4 A.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for robust performance and reliability in a wide range of industrial applications. This female, straight connector features a 4-pin, A-coded design, with an orange body for easy identification. It is rated for 230 V AC/DC and a current of 4 A, making it suitable for demanding environments. The cordset includes an orange PVC cable with 4 wires and a 0.25 mm² conductor size, ensuring excellent durability and flexibility. The coupling nut is made of stainless steel, and the product meets IP65 and IP67 protection standards, providing excellent resistance against dust and water ingress. With a wide operating temperature range from -25°C to +50°C, the M12 F&B cordset is an ideal choice for various sensor and actuator applications.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 4-pin, A-coded connector housed in an orange body. This cordset is ideal for applications requiring a secure and reliable connection with its 230 V AC/DC and 4 A rating. The cable is made from durable PVC, colored orange for visibility, and consists of 4 wires each of 0.25 mm². The connector features a stainless steel coupling nut and an EPDM O-ring, ensuring a protective seal. With an IP65 and IP67 rating, this cordset is protected against dust and water ingress, making it suitable for a range of environmental conditions. Its robust construction supports usage temperatures from -25°C to +50°C and is compliant with IEC 61076-2-101 standards.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a specialized connector designed for reliable performance in industrial environments. This female, straight, 4-pin, A-coded cordset comes with an orange body and operates at 230 V AC/DC with a current rating of 4 A. It features an orange PVC cable with 4 wires (0.25 mm² each), ensuring robustness and durability. The product meets IEC 61076-2-101 standards, guaranteeing high-quality and secure connections. Additionally, it boasts IP65 and IP67 ratings for protection, making it suitable for both indoor and outdoor use. The cordset is ideal for connecting sensors and actuators to controllers with ease, providing secure and efficient connectivity solutions.

The M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset is engineered for robust sensor and actuator connectivity in industrial environments. It features a female, straight, 4-pin connector, A-coded for enhanced compatibility. The connector body is designed in a high-visibility orange color and rated for 230 V AC/DC and 4 A current. The attached PVC cable is equally durable, with four wires of 0.25 mm² conductor size, offering flexibility and reliable performance in harsh conditions. The product also boasts an operating temperature range of -25 °C to +50 °C and conforms to IP65 and IP67 protection standards, ensuring dust-tight and water-resistant performance. Additionally, it meets IEC 61076-2-101 design standards and is RoHS compliant. This cordset is particularly suitable for use in food and beverage manufacturing environments, automotive assembly lines, and other automational applications where clean and reliable connectivity is critical. Its robust build also includes chemical and oil resistance, making it suitable for various industrial applications.
