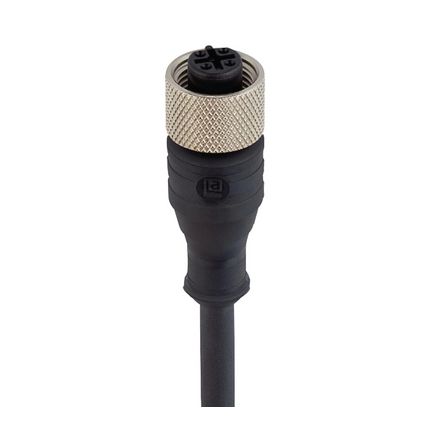

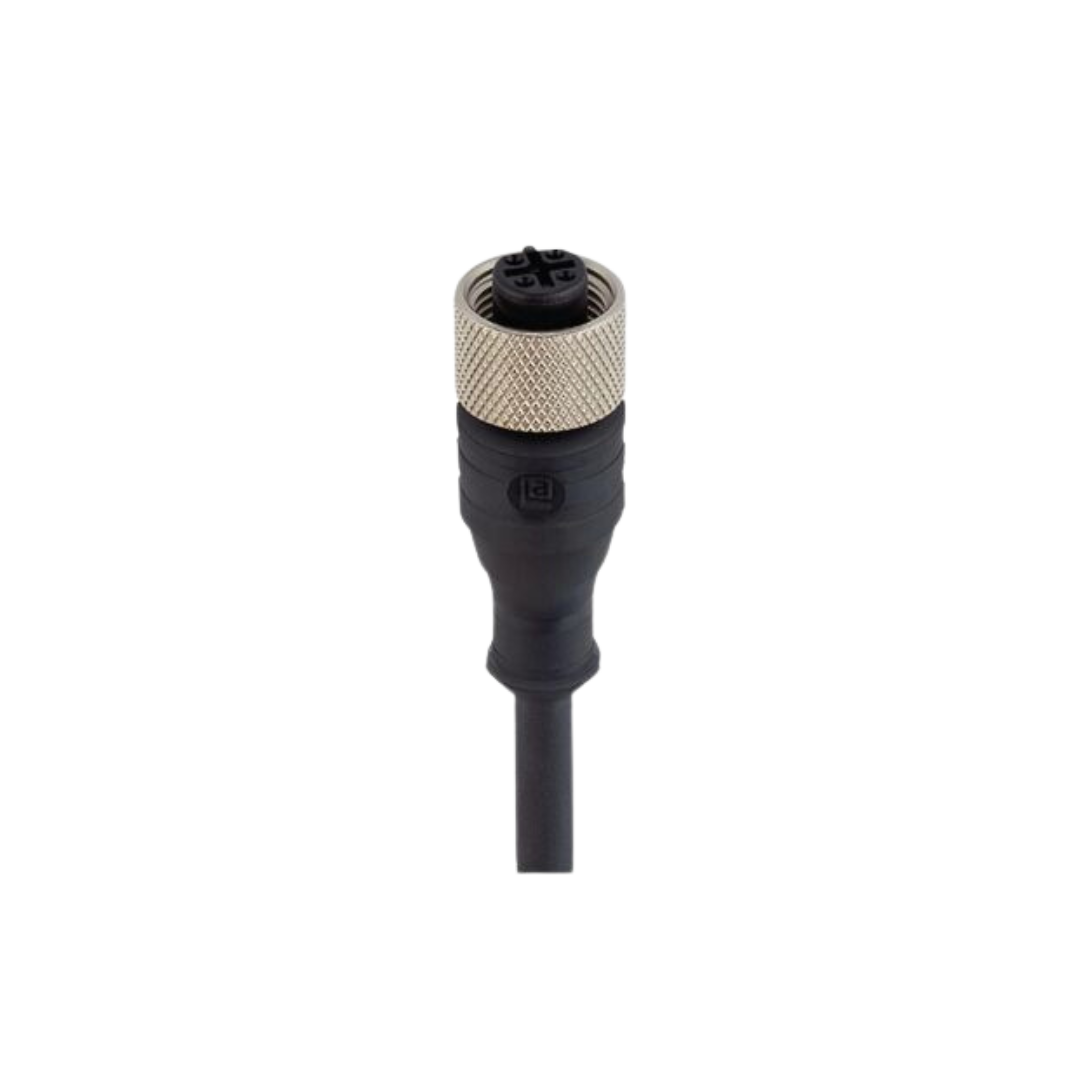

M12 B-Coded Female Translucent Body PUR Black 4-Wire

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable and robust connectivity in industrial environments. This cordset features a female, straight, 4-pin, B-coded connector with a translucent body. It operates at voltages of 50 V AC / 60 V DC and a current of 4 A, ensuring compatibility with a range of sensor and actuator applications. The PUR black cable is comprised of 4 wires, each with a cross-sectional area of 0.34 mm², providing durability and flexibility in various installation scenarios. Benefits of this cordset include high resistance to wear and environmental factors, with protective features such as IP65, IP67, IP68, and IP69K ratings, safeguarding against dust and water ingress in harsh operating conditions. The cable's composition ensures resistance to microbes, hydrolysis, and cold exposure, making it suitable for both indoor and outdoor use. This product is ideal for applications where reliable signal transmission is crucial, such as in automation systems, manufacturing lines, and sensor-based monitoring systems. The inclusion of detailed technical specifications guarantees its effectiveness and adherence to industry standards, ensuring long-term and high-performance operation.

The M12 Standard Sensor/Actuator Single-Ended Cordset (RKT 4B-225) is designed for robust industrial applications. It features a female, straight connector with 4 pins and B-coding. The connector is rated for 50 V AC / 60 V DC and can handle up to 4 A of current. The body is translucent, providing easy visual inspection, and constructed from durable TPU. The 4-wire cable is made of PUR black material with a diameter of 4.7 mm and conductor size of 0.34 mm². This cordset excels in environments with temperature ranges from -40 °C to +90 °C and is rated IP65, IP67, IP68, and IP69K for excellent protection against water and dust. Its high resistance to microbes and hydrolysis, along with its lack of PVC and silicone, ensures reliable performance and longevity.
