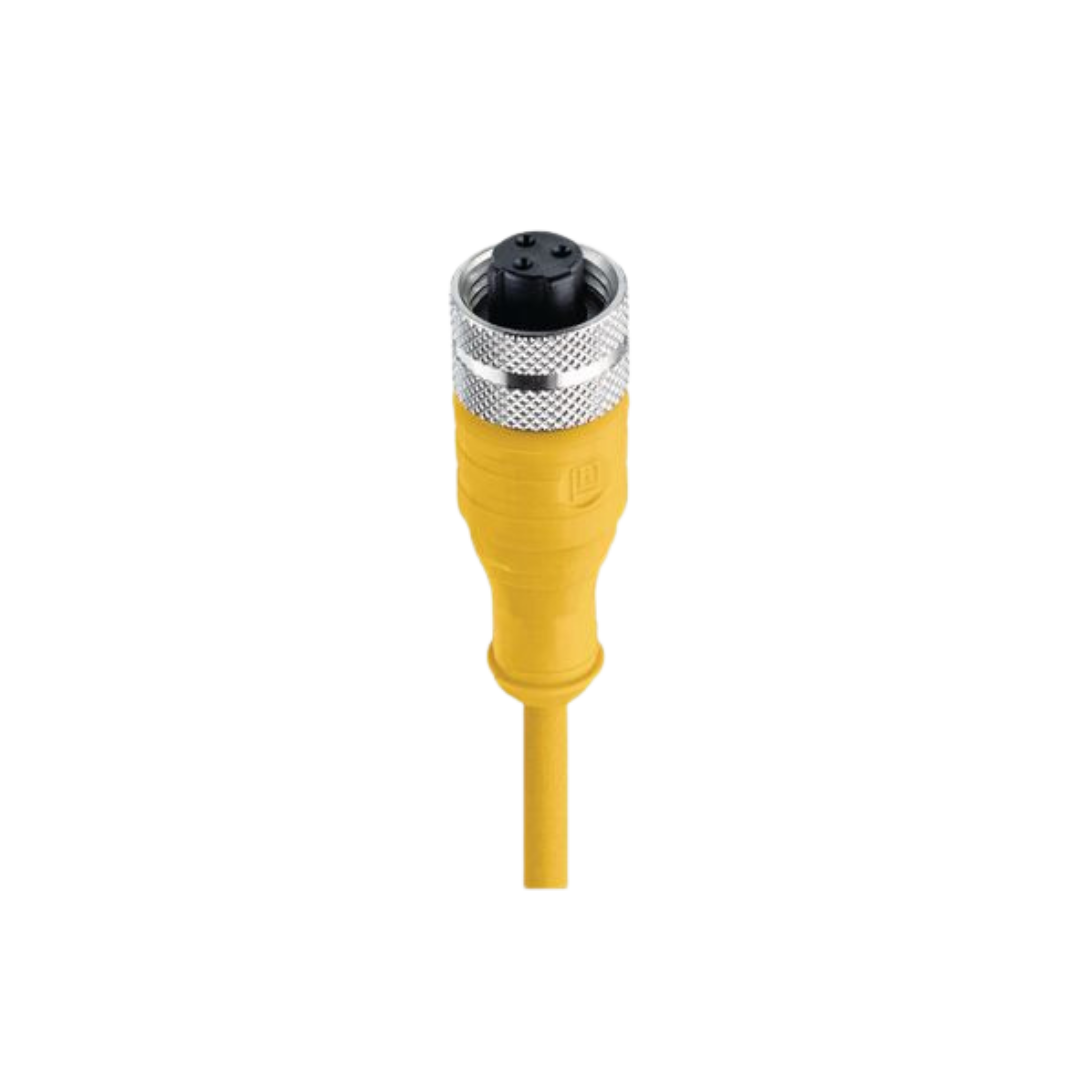

M12 U-Coded Female PVC Yellow

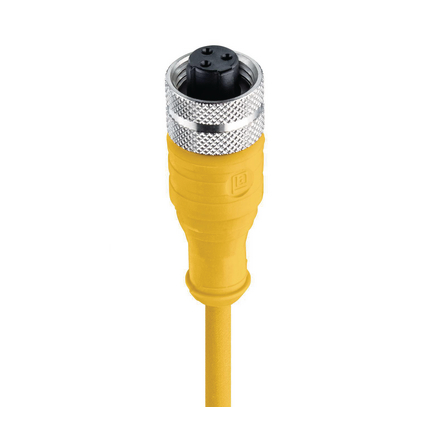

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is designed for reliable and efficient connections in automation systems. Featuring a female, straight, 3-pin, U-coded configuration, this cordset has a durable yellow body suitable for various environments. The product supports a voltage of 230 V AC/DC and a current rating of 4 A, making it versatile for both sensor and actuator applications. The connector is attached to a sturdy PVC yellow cable with 3 wires of 0.38 mm² each, providing optimal connectivity and performance. Additionally, this cordset ensures a high degree of protection with IP65 and IP67 ratings, making it suitable for harsh industrial conditions.

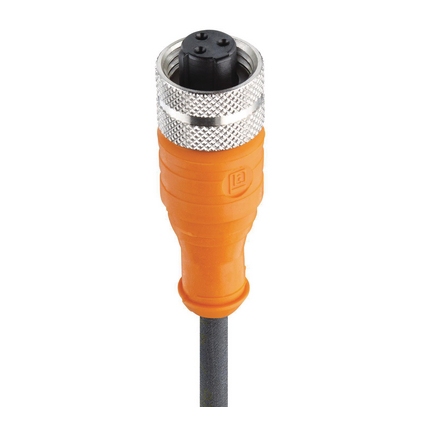

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is equipped with a 3-pin female straight connector, U-coded, housed in an orange body. This cordset operates at 230 V AC/DC with a current rating of 4 A. The cord features a 0.50 mm² cross-section PUR black cable, containing 3 wires and demonstrating impressive flexibility characterized by a minimal bending radius. Additional technical specifications include a contact resistance of ≤ 10 mOhm, insulation resistance of ˃ 10^9 Ohm, and the ability to withstand ambient operating temperatures ranging from -40 °C to +90 °C. The cordset provides robust protection with an IP65, IP67, and IP69K rating, making it suitable for demanding environments. This product ensures halogen-free construction, high chemical and oil resistance, and compliance with RoHS.

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is an essential component for secure and efficient connections in various automation applications. Featuring a straight female 3-pin U-coded connector with a robust yellow body, this cordset is built to handle a rated voltage of 230V AC/DC and a current of 4A. The high-quality PVC yellow cable includes three wires with a conductor size of 0.38 mm², ensuring reliability and durability. The design complies with IP65 and IP67 protection degrees, making it suitable for industrial environments with varying temperatures ranging from -40°C to +90°C. This cordset also offers excellent resistance to oil and chemicals, further solidifying its durability. Ideal for use in automation systems, this cordset ensures uninterrupted and secure connections, facilitating effective sensor and actuator functions.

The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is a robust and reliable connector solution suitable for various industrial applications. Featuring a female, straight, 3-pin, U-coded design, and a vibrant yellow body, this cordset ensures secure and efficient electrical connections. It operates at a voltage of 230 V AC/DC and handles a current capacity of up to 4 A. The attached PVC yellow cable has a conductor size of 0.38 mm² and includes 3 wires, making it highly durable and versatile. The 1/2"-20UNF-2B cordset offers several benefits, including high insulation resistance (>10^9 Ohm) and low contact resistance (≤ 10 mOhm), ensuring reliable performance in harsh environments. The connector is equipped with a TPU molded body and contact bearer, providing robust protection against physical wear and tear. Rated to IP65 and IP67 protection degrees, and operating efficiently across a broad temperature range (-40 °C to +90 °C), this cordset is suitable for challenging industrial settings. This cordset is ideal for use in various sensor and actuator connection applications, particularly in industrial automation systems. Its U-coding ensures compliance with standard connection protocols, while the sturdy design and material choices make it suitable for both fixed and flexible installations. The product is also equipped with good chemical and oil resistance properties, enhancing its longevity and reliability in demanding environments.
