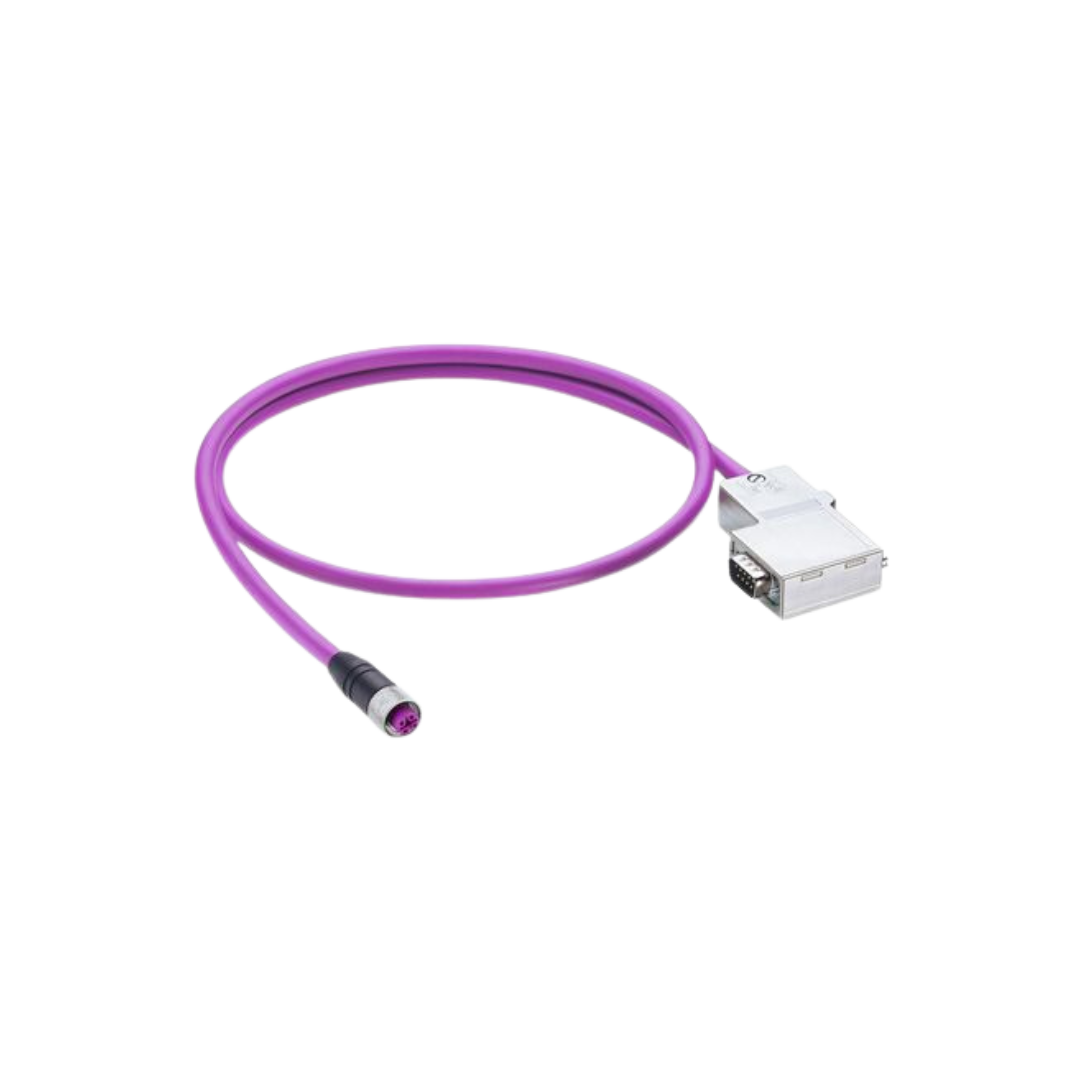

M12 B-Coded Female to SUB-D PUR Violet PROFIBUS

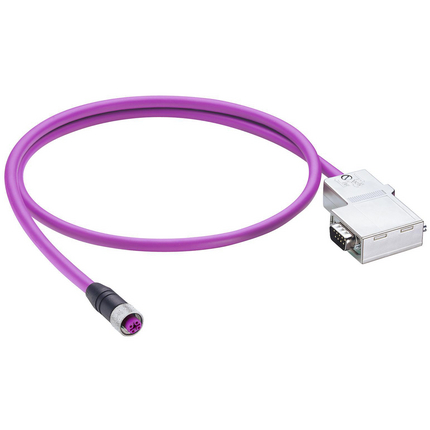

0975 254 104/8 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for dependable PROFIBUS data transmission. It features a male angled SUB-D-coded SUB-D connector to a female straight B-coded black M12 Standard connector. This cordset is shielded and supports operating voltages between +4.75 and +5.25 V DC with a current rating of 12.5 mA. The cable is PUR-coated in violet and has two wires with a conductor size of 0.34 mm². Its robust construction includes a nickel-plated ABS molded body and provides excellent resistance to chemicals, oils, and environmental factors, making it suitable for demanding applications.
€200.82
per item

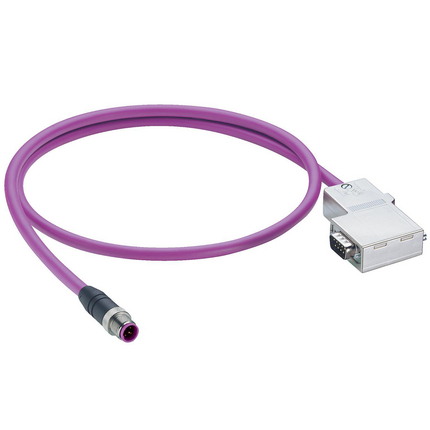

0975 254 105/15 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for reliable data transmission in industrial environments. It features a male straight B-coded black M12 connector on one end and a male angled SUB-D-coded SUB-D connector on the other, providing robust shielding with a voltage range of +4.75 ... +5.25 V DC and a current rating of 12.5 mA. The cordset uses a durable PUR violet cable with 2 wires, each 0.34 mm² in size, ensuring high performance and longevity. The connectors offer a high degree of protection (IP65/IP67 on M12 side and IP40 on SUB-D side) and are engineered to withstand a wide range of temperatures and environmental conditions. This cordset is ideal for use in PROFIBUS networks, ensuring a secure and efficient connection with excellent resistance to chemicals, oils, and harsh conditions.
€240.70
per item
0975 254 105/0,3 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male straight B-coded black M12 Standard to a male angled SUB-D-coded SUB-D connector, ensuring reliable data transmission. This cordset is shielded and operates within a voltage range of +4.75 to +5.25 V DC with a current rating of 12.5 mA. It is a durable option for various industrial applications, constructed with a robust PUR violet cable housing 2-wires of 0.34 mm² each. The M12 connector is designed to withstand up to 100 mating cycles and offers a high degree of environmental protection with IP65 and IP67 ratings. The SUB-D connector retains its integrity under various conditions, featuring a contact resistance of ≤ 20 mOhm. Suitable for PROFIBUS applications, this cordset is engineered for resilient performance under operational temperatures ranging from -25°C to +80°C on the M12 side and 0°C to +60°C on the SUB-D side.
€154.58
per item
0975 254 105/10 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is an essential component in industrial automation and data communication systems. It connects a male straight B-coded black M12 Standard connector to a male angled SUB-D-coded SUB-D connector, providing a reliable and shielded connection. Operating within a voltage range of +4.75 to +5.25 V DC and a current rating of 12.5 mA, it ensures stable data transmission over its two-wire, 0.34 mm² PUR violet cable. The cord's robust build includes a TPU-GF contact bearer and CuZn contact base material, ensuring longevity and performance in demanding environments. Designed to meet IEC 61076-2-101 standards, it operates within temperatures from -25°C to +80°C and is rated IP65/IP67 on side 1 and IP40 on side 2, making it suitable for various industrial applications.
€208.37
per item
0975 254 105/5 M
PROFIBUS Data Double-Ended Cordset
This PROFIBUS Data Double-Ended Cordset is designed with a male straight B-coded M12 connector on one end and a male angled SUB-D-coded SUB-D connector on the other. It features robust shielding and operates at a voltage range of + 4.75 … +5.25 V DC with a current capacity of 12.5 mA. The cordset is equipped with a durable PUR violet cable, 2-wires, and a conductor size of 0.34 mm². The length and integrity of the cable ensure reliable data transmission in industrial environments. This cable meets various safety and operational standards, making it suitable for use in demanding conditions.
€184.25
per item
0975 254 105/3 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset: Male straight B-coded black M12 Standard to male angled SUB-D-coded SUB-D is a reliable and high-quality cordset designed for PROFIBUS data transmission. This cordset features a shielding system that protects it from electromagnetic interference, ensuring stable data transfer. The flexible PUR violet cable, with a conductor size of 0.34 mm² and 2 wires, enhances its durability and resistance to harsh environmental conditions. Operating at +4.75 to +5.25 V DC and capable of a rated current of 12.5 mA, it offers robust performance for various industrial uses.
One of the primary benefits of this cordset is its durability and flexibility. The PUR jacket material provides excellent resistance to chemicals, oils, and mechanical stress, making it ideal for use in challenging environments. The gold plating on the contacts offers superior conductivity and resistance to oxidation and corrosion, further extending the product's lifespan. Additionally, the shielded design ensures reliable data transmission by reducing interference from external sources.
This cordset is well-suited for applications requiring efficient and secure data transmission, such as industrial automation, networking, and control systems. Its compatibility with various PROFIBUS devices and its superior construction make it a valuable component for reliable and high-performance data transmission in industrial settings.
€172.91
per item
0975 254 105/2 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for robust data communication. It features a male straight B-coded black M12 standard connector to a male angled SUB-D-coded SUB-D connector. The shielded cable is made from PUR in violet color, encapsulating 2 wires of 0.34 mm² each. Operating within a voltage range of +4.75 to +5.25 V DC, and a current rating of 12.5 mA, this cordset ensures efficient data transfer for PROFIBUS applications. It has a high resistance to electromagnetic interference and mechanical stress, making it suitable for industrial automation systems. The cable length varies from 0.3m to 75m, providing flexibility in installation while maintaining signal integrity even in harsh environments. The connectors comply with IP65/IP67 protection ratings, ensuring durability and reliability.
€167.29
per item
0975 254 105/1 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male straight B-coded black M12 Standard connector to a male angled SUB-D-coded SUB-D connector. This cordset is shielded and intended for data transmission in PROFIBUS networks, operating at +4.75 to +5.25 V DC, and has a rated current of 12.5 mA. The PUR violet cable measures 2-wires at 0.34 mm², maintaining robust connectivity and resilient signal transmission across the network. The cordset is designed for use in demanding environments, ensuring high performance and reliability with excellent protection against electrical interference due to its shielding. It supports an operation range of -25 °C to +80 °C on the M12 side and 0 °C to +60 °C on the SUB-D side, with IP65/IP67 protection ratings on the M12 end, and IP40 on the SUB-D end, providing robustness in tough operational conditions. Ideal for flexible and fixed installations, it maintains integrity and performance over a long operational life, making it perfect for industrial automation and control systems.
€161.58
per item
0975 254 105/75 M
PROFIBUS Data Double-Ended Cordset
PROFIBUS Data Double-Ended Cordset: This high-quality cordset features a male straight B-coded black M12 standard connector and a male angled SUB-D-coded SUB-D connector. Shielded for optimal performance, it operates with an input voltage of +4.75 to +5.25 V DC and supports a current of 12.5 mA. The cordset is encapsulated in a durable, microbe-resistant PUR violet cable with two 0.34 mm² wires, making it ideal for industrial applications needing dependable data transmission. With a robust design ensuring resistances against chemicals and oil, this cordset is suitable for a variety of settings, from fixed installations to flexible and drag chain installations.
€496.50
per item
0975 254 105/40 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male straight B-coded black M12 Standard to male angled SUB-D-coded SUB-D connection. It is shielded and operates at +4.75 to +5.25 V DC and 12.5 mA. The cordset comes with a sturdy violet PUR cable, consisting of 2 wires with a conductor size of 0.34 mm². It is designed for reliable data transmission in PROFIBUS networks. The cordset's shielding and robust construction ensure minimal interference and enhanced signal quality, making it suitable for industrial environments where dependable data communication is crucial.
€325.14
per item
0975 254 104/0,6 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for industrial data transmission applications. It features a male angled SUB-D-coded SUB-D connector on one end and a female straight B-coded black M12 standard connector on the other. This cordset is shielded to ensure minimal signal interference and operates within a voltage range of +4.75 to +5.25 V DC at 12.5 mA. The 2-wire cable is constructed with a robust PUR jacket in a distinctive violet color, making it highly durable and resistant to chemicals, oils, and environmental stressors. The cordset is available in multiple lengths ranging from 0.3 to 40 meters, catering to various installation requirements in industrial automation setups.
€161.89
per item
0975 254 104/1 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is a high-quality communication solution featuring a male angled SUB-D-coded SUB-D connector on one end and a female straight B-coded black M12 connector on the other. This setup ensures robust and reliable data transmission, catered specifically for PROFIBUS applications. The cordset is shielded, operating at a voltage range of 4.75 to 5.25 V DC and supporting a current rating of 12.5 mA. The 2-wire design comes with a durable PUR violet cable, providing excellent resistance to chemicals, oil, microbes, and hydrolysis, and ensuring flexibility even in cold conditions. Measuring 0.34 mm² in conductor size, it offers optimized transmission values that meet the PROFIBUS user organization standards.
€161.58
per item
0975 254 104/3 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male angled SUB-D-coded SUB-D connector to a female straight B-coded black M12 Standard connector. This high-quality cordset is shielded and operates at +4.75 to +5.25 V DC with a rated current of 12.5 mA, making it robust and reliable for data transmission needs. The cord is designed using a durable PUR violet cable with 2-wires and a conductor size of 0.34 mm², conforming to protection degree IP40 on the SUB-D side and IP65/IP67 on the M12 side. With exceptional resistance to various environmental factors and a high number of mating cycles, this cordset ensures reliable performance in industrial applications.
€172.91
per item
0975 254 104/25 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male angled SUB-D-coded SUB-D connector to a female straight B-coded black M12 standard connector, both shielded for optimal data transmission. The electrical specifications include an operating voltage of +4.75 to +5.25 V DC and a rated current of 12.5 mA. The cordset is constructed with a high-quality, PUR violet cable, consisting of 2 wires with a conductor size of 0.34 mm². This ensures robust performance and resistance to various environmental factors including chemicals and oils. The cable jacket color is violet as per the RAL 4001 standard, and it features a minimal bending radius for both fixed and flexible installations. Applications include PROFIBUS data transmission in industrial automation settings where reliable and high-speed data transfer is critical.
€261.80
per item
0975 254 104/20 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset offers a robust and efficient solution for high-quality data transmission within industrial settings. This male angled SUB-D-coded SUB-D to female straight B-coded black M12 Standard cordset is shielded for optimal protection. The cordset operates efficiently at +4.75 to +5.25 V DC and 12.5 mA. Constructed with a PUR violet cable, it ensures durability with its two-wire, 0.34 mm² configuration. This cable meets high resistance to environmental influences, making it ideal for harsh operational conditions. Suitable for numerous applications, its implementation enhances the reliability and efficiency of PROFIBUS systems in various industrial automation frameworks.
€239.39
per item
0975 254 104/15 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset features a male angled SUB-D-coded SUB-D to female straight B-coded black M12 Standard. This cordset is shielded to protect against interference and supports an operating voltage range of +4.75 … +5.25 V DC and a rated current of 12.5 mA. The PUR violet cable is robust and flexible, consisting of two wires with a conductor size of 0.34 mm². This cable is designed to withstand a range of environmental conditions, with a temperature range of -50 °C to +80 °C for fixed installation and high cyclic bending resistance. The cordset ensures data transmission meets PROFIBUS standards, making it ideal for industrial networking applications.
€252.09
per item
0975 254 104/10 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for high-performance data transmission in industrial environments. It features a male angled SUB-D-coded SUB-D connector on one end and a female straight B-coded black M12 connector on the other. With an operating voltage range of +4.75 to +5.25 V DC and a current rating of 12.5 mA, this cordset ensures stable performance. The violet PUR cable is 2-wired with a 0.34 mm² cross-sectional area, providing flexibility and durability. Shielded to prevent electromagnetic interference, it is also resistant to chemicals, oil, and microbes. The cordset supports operating temperatures from -25°C to +80°C and meets IP65 and IP67 standards when properly mounted. Ideal for PROFIBUS applications, it is available in various lengths to suit different installation needs.
€212.25
per item
0975 254 104/5 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is essential for seamless data connectivity in industrial automation systems. It features a male angled SUB-D-coded SUB-D connector on one end and a female straight B-coded black M12 Standard connector on the other, providing robust and secure connections. The cordset is shielded to ensure data transmission integrity and operates at a voltage range of +4.75 to +5.25 V DC with a rated current of 12.5 mA. The 2-wire cable, with a conductor size of 0.34 mm², is encased in a durable PUR jacket that is violet in color, maintaining flexibility and reliability in various operating conditions. The connectors are designed for ease of use, with the SUB-D carrying 9 pins and the M12 having 5 pins. This cordset is ideal for PROFIBUS applications, ensuring optimal performance with its shielding against electromagnetic interference, and can function within temperature ranges specified for both fixed and flexible installations.
€184.23
per item
0975 254 104/2 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for reliable data transmission in industrial settings. It connects a male angled SUB-D-coded connector to a female straight B-coded black M12 connector. Shielded against interference, it operates within a voltage range of +4.75 to +5.25 V DC and accommodates a current rating of 12.5 mA. The violet PUR cable is durable, flexible, and resistant to harsh environments, with a conductor size of 0.34 mm² and a length of 2 meters. Featuring high-grade materials, it ensures stability and longevity in demanding applications.
€167.29
per item
0975 254 104/30 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for efficient data transmission, featuring a male angled SUB-D-coded SUB-D connector and a female straight B-coded black M12 standard connector. This high-quality cordset is shielded to ensure minimal interference and operates within the voltage range of +4.75 to +5.25 V DC, with a rated current of 12.5 mA. The PUR violet cable with two 0.34 mm² wires ensures durability and flexibility. With its robust construction, it supports a wide ambient temperature range and is suitable for varied industrial applications.
€242.00
per item
0975 254 104/40 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is a reliable solution for data communication, featuring a male angled SUB-D-coded SUB-D connector transitioning to a female straight B-coded black M12 standard connector. This high-performance cable is shielded and operates within a voltage range of +4.75 to +5.25 V DC, with a rated current of 12.5 mA. The robust PUR violet cable, consisting of 2-wires with a cross-section of 0.34 mm², ensures secured data transmission even in challenging environments.
Benefits include superior shielding to prevent electromagnetic interference, enhancing the clarity and reliability of data communication. The cordset's flexibility is highlighted by its minimal bending radius, and with an ambient temperature range extending from -50°C to +80°C, it is suitable for both fixed and flexible installations.
The cordset is specifically designed for applications in industrial automation where PROFIBUS communication protocols are prevalent. Whether for connecting devices in control cabinets or for field-level data transmission, this double-ended cordset ensures dependable connectivity in a variety of industrial settings.
€325.14
per item
