M12 Molded With Cable Double-Ended
EIP 100Mbps M12-RJ45 2P24 1m
ETHERNET/IP Cat5e 100 Mbps Fast Ethernet Double-Ended Cordset
The ETHERNET/IP Cat5e 100 Mbps Fast Ethernet Double-Ended Cordset is designed to deliver high-speed and reliable data transmission in demanding environments. This cordset connects male straight D-coded black M12 standard to male straight black RJ45, ensuring compatibility with various industrial applications. The shielded, rugged PUR teal cable houses four wires, making it perfect for efficient networking and robust connections. Rated for a voltage of 30 V AC / 42 V DC, this cordset supports fast Ethernet Cat5e data transmission at 100 Mbit/s, making it ideal for automation and industrial Ethernet setups. The durable construction with a special compound Polyurethane-based jacket ensures long-lasting performance and environmental protection. It withstands ambient temperatures from -40°C to +90°C, ensuring reliability under extreme conditions.
This cordset offers excellent benefits such as reduced interference due to its shielded design and enhanced durability from the PUR material. It features high mating cycles (≤ 100) and an excellent contact resistance (≤ 10 mOhm). With a pollution degree of 3 according to DIN EN 60664-1 and a high insulation resistance of ˃ 10^9 Ohm, it ensures safe and reliable operations. The cordset's IP65 and IP67 ratings guarantee protection against dust and water ingress when properly mounted.
Ideal for use in industrial automation, machine-to-machine communications, and other demanding networking environments, this cordset facilitates robust and reliable connections between devices. It is available in various lengths (1m, 5m, and 10m) to suit different installation requirements.
On Request
RSTS 8X-RSTS 8X-669/10 M
Gigabit Ethernet Cat6 Data Double-Ended Cordset
The Gigabit Ethernet Cat6 Data Double-Ended Cordset is designed for reliable and high-speed data transmission. It features male straight X-coded black M12 Standard connectors on both ends, offering superior shielding and robustness. The cordset supports voltages of 50 V AC / 60 V DC and a current rating of 0.5 A. The green PUR cable, with an 8-wire configuration (4x2x0.14 mm²), ensures durability and flexibility, suitable for various environments. The cable provides high performance with a data transmission rate of up to 10 Gbit/s, meeting the demanding requirements of industrial networking applications. It's excellent for connectivity in harsh and demanding conditions due to its IP65 and IP67 protection ratings, ensuring solid protection against dust and water ingress. This product is ideal for use in factory automation, machinery, and network infrastructure where reliable data transfer is critical.
€260.69
per item
0985 YM57530 103/2 M
Fast Ethernet Cat5e, double-ended cord set
Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with teal jacket
€71.24
per item
0985 342 116/35 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset features a male straight D-coded black M12 Standard connector to a female straight D-coded black M12 Standard connector. This shielded cordset supports 50 V AC / 60 V DC and 4 A current. The cordset includes a durable green PUR cable with 4 wires (2x2x0.34 mm²). Designed to meet the IEC 61076-2-101 standard, it offers reliable data transmission at 100 Mbit/s, making it perfect for industrial Ethernet applications. This cordset is noted for its high protection degree of IP65, IP67, and IP69K, ensuring robust performance under harsh conditions.
€211.46
per item
0985 342 S4724/70 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is a high-performance networking solution, featuring female straight D-coded black M12 Standard connectors on both ends. It is shielded to ensure reliable signal transmission and rated for 50 V AC / 60 V DC, with a current rating of 4A. The green PUR cable is robust and durable, with a 4-wire configuration (2x2x0.34 mm²), providing excellent resistance against oils, chemicals, and harsh environmental conditions. This cordset meets stringent industry standards, including IP65, IP67, and IP69K protection degrees, ensuring it can withstand dust, water, and other contaminants, making it ideal for use in demanding industrial environments where secure and efficient data transmission is essential.
On Request
0985 S4742 104/8 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset features a male straight D-coded black M12 Standard connector on one end and a male straight RJ45-coded black RJ45 Field Attachable connector on the other. This cordset is shielded and operates at 30 V AC / 42 V DC with a current capacity of 1.5 A. The green TPE cable has 4 wires, each 0.38 mm², ensuring robust data transmission at Fast Ethernet speeds of 100 Mbit/s. The M12 connector complies with IEC 61076-2-101 standards, offering IP65, IP67, and IP69K protection ratings, making it highly durable against harsh environmental conditions. With a wide operational temperature range from -40°C to +90°C, this cordset is ideal for various industrial applications. The RJ45 connector, adhering to IEC 60603-7 standards, is also equipped to handle up to 750 mating cycles, ensuring longevity and reliability in network setups.
€134.98
per item
0985 S4742 116/5 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed with precision and reliability in mind. This cordset features male straight D-coded black M12 Standard connectors, coupled with a female straight D-coded black M12 Standard connector, and operates with a voltage rating of 50 V AC/60 V DC and a current rating of 4 A. It comprises a TPE green cable that is shielded and houses 4 wires each with a conductor size of 0.38 mm², ensuring optimal data transmission for Fast Ethernet connections. The cable boasts a diameter of 6.50 mm, with an insulation material of PP. The connectors are meticulously constructed with materials such as CuSn, Cu/Au plating, and TPU that provide durability and resistance to various environmental conditions.
The key benefits of this product include robust shielding for noise reduction and consistent signal integrity during data transmission. The use of high-quality materials provides excellent resistance to temperatures, oil, sunlight, and mechanical wear, making the cordset suitable for a wide range of industrial environments. With its high mating cycles of up to 100 and protection ratings of IP65, IP67, and IP69K, the cordset promises longevity and reliable performance in demanding conditions.
Applications of this cordset span across diverse industrial automation sectors where reliable and fast data transmission is crucial. Its superior resistance properties make it perfect for use in harsh environments. The connector design, compliant with IEC 61076-2-101 standards, ensures compatibility and safety, making it ideal for machine connections, transportation systems, and factory automation networks.
€68.57
per item
0985 342 134/45 M Umspritzt
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset features a male angled D-coded black M12 standard connector on one end and a male straight RJ45-coded black on the other. This robust cordset ensures secure and reliable data transmission at a speed of up to 100 Mbit/s, making it ideal for demanding industrial environments. The shielded, green PUR cable with a 2x2x0.34 mm² configuration safeguards the connection against electromagnetic interference, ensuring a stable performance under heavy operational conditions. Rated for 30 V AC / 42 V DC and a current of 1.5 A, this cable is designed to maintain integrity in a wide temperature range of -40°C to +90°C on side 1 and -25°C to +60°C on side 2. The IP65, IP67, IP68, and IP69K rated M12 connector offers enhanced protection against dust and water, ensuring long-term durability and reliability.
The cordset's primary benefit lies in its robust construction, which includes high-quality materials and a well-engineered design that supports high-speed data transmission while resisting environmental and mechanical stresses. This makes it highly suitable for industrial automation, telecommunications, and networking applications that demand consistent and high-performance connectivity.
This cordset is perfect for use in factory automation systems, machine-to-machine communication setups, and any installation requiring secure and high-speed Ethernet connections. Its shielding and durable construction ensure it can withstand harsh working conditions typical in industrial environments, making it a reliable component for critical data transmission tasks.
€256.03
per item
0985 342 104/25 M umspritzt
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for seamless and reliable data transmission. It features a robust PUR green cable with a length of 1.5 meters, making it suitable for various industrial and data communication applications. The cordset includes a male straight D-coded black M12 connector on one end and a male straight RJ45 black RJ45 connector on the other, both shielded for enhanced performance and reliability. This cordset supports fast Ethernet Cat5e data transmission with a rate of 100 Mbit/s, and its current rating is 1.5 A, with an operating voltage of 30 V AC / 42 V DC. The cable is constructed with 4-wires (2x2x0.34 mm²) and meets high standards of quality and performance, including a wide operating temperature range and excellent resistance to environmental factors. This cordset is ideal for use in harsh industrial environments, offering durability, flexibility, and reliability. It is also compliant with RoHS standards, ensuring safety and environmental compatibility.
€154.63
per item
0985 508 121/20 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for demanding industrial applications, particularly in railway systems. It features male straight D-coded black M12 Railway connectors on both ends, ensuring a secure and robust connection. The cordset is shielded to protect against electromagnetic interference, supporting data transmission at Fast Ethernet Cat5e speeds of 100 Mbit/s. It is rated for voltages of 50 V AC / 60 V DC and currents up to 4 A. The X-FRNC black cable is durable, flame-retardant (UL 94 V-0), and halogen-free, with a conductor size of 0.34 mm² and four wires colored yellow, white, orange, and blue. The double-ended design and high IP ratings (IP65, IP67, IP69K) make this cordset suitable for harsh environments in industrial and transportation settings. The connectors feature coupling screws and are made from nickel-plated CuZn for enhanced durability. The insulation resistance is higher than 10^9 Ohm and the contact resistance is up to 10 mOhm, ensuring excellent electrical performance.
€222.20
per item
0975 254 101/2 M
PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for reliable data transmission in industrial applications. This cordset features a male straight B-coded black M12 Standard connector on one end and a female straight B-coded black M12 Standard connector on the other. It is shielded to ensure signal integrity and supports a rated voltage of 50 V AC / 60 V DC and a current rating of 4 A. The cordset includes a durable PUR violet cable with 2 wires and a conductor size of 0.34 mm². The cable is highly resistant to environmental factors, including chemicals, oils, and microbes, ensuring long-lasting performance in harsh conditions. The connectors meet the IEC 61076-2-101 standard and offer IP65/IP67 protection, making them suitable for use in demanding industrial environments.
€62.59
per item
RSMGVS-4D-RSMGVS-4D-0467/02 M
M8 double ended cordset for PROFINET applications
M8 double ended cordset for PROFINET applications, Fast Ethernet Cat 5e up to 100 Mbit/s, shielded, 4 pole, D coded, male to male, straight to straight, PUR green cable, AWM 20549, twisted pairs: white-blue & blue, white-orange & orange, ø 6.5 ±0.20 mm, conductor size 2x2x0.34 mm², 48 V AC / 60 V DC operating voltage, rated current 4 A, suited for IP65 and IP67 environment
€89.48
per item
0935 253 103/0,6 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is designed for seamless data transmission and power supply in industrial environments. Featuring a straight male A-coded black M12 Standard connector coupled with a straight female A-coded black M12 Standard connector, this cordset supports 50 V AC/60 V DC and 4 A. The black PUR cable includes 4 wires, with data transmission handled by two 0.25 mm² wires and power by two 0.34 mm² wires, ensuring efficiency and durability. With a robust build adhering to IEC 61076-2-101 standards, and IP65, IP67, IP68, and IP69K protection ratings, it offers reliable performance in challenging conditions. Ideal for complex network setups and robust data transmission in various industrial applications.
€30.32
per item
0975 254 105/2 M

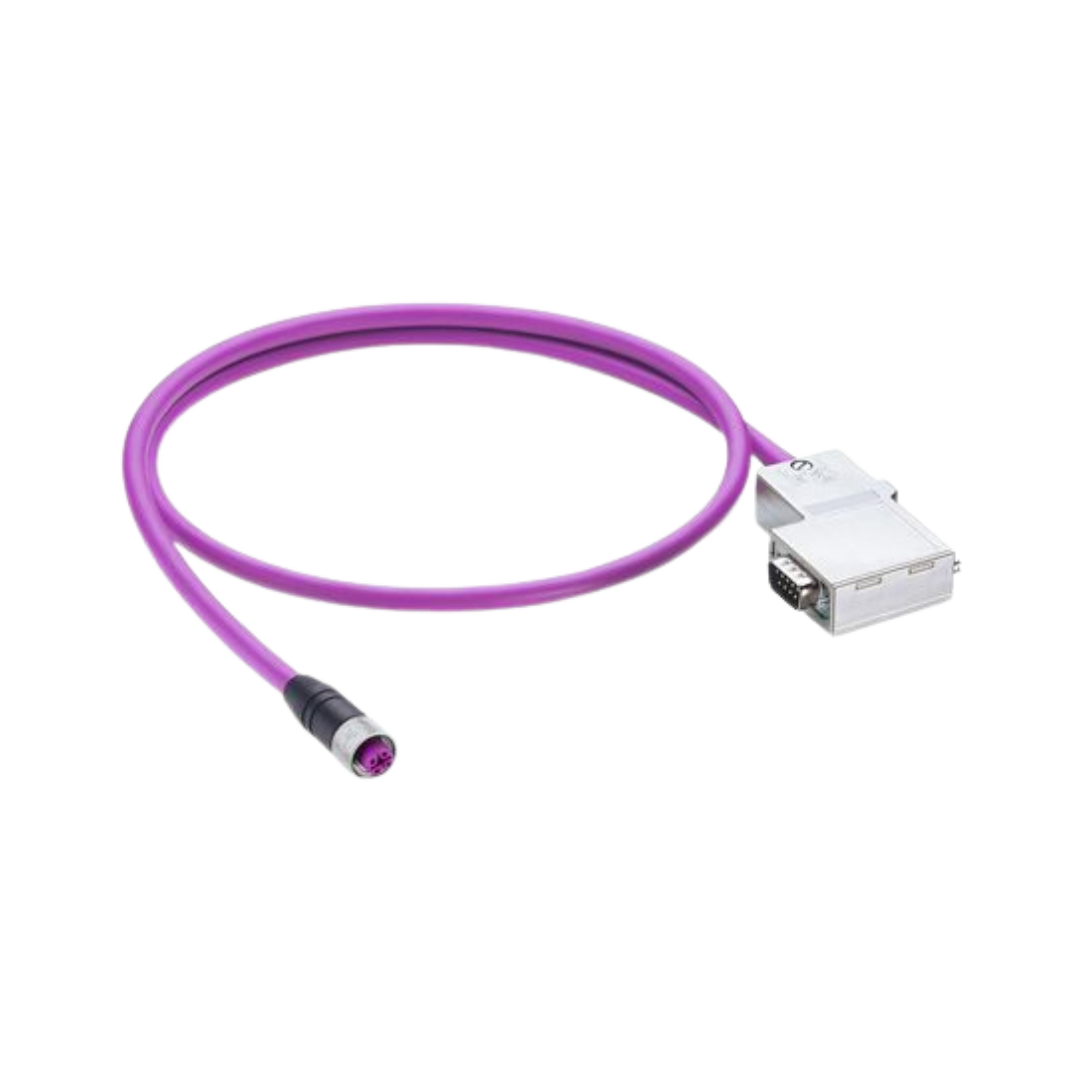

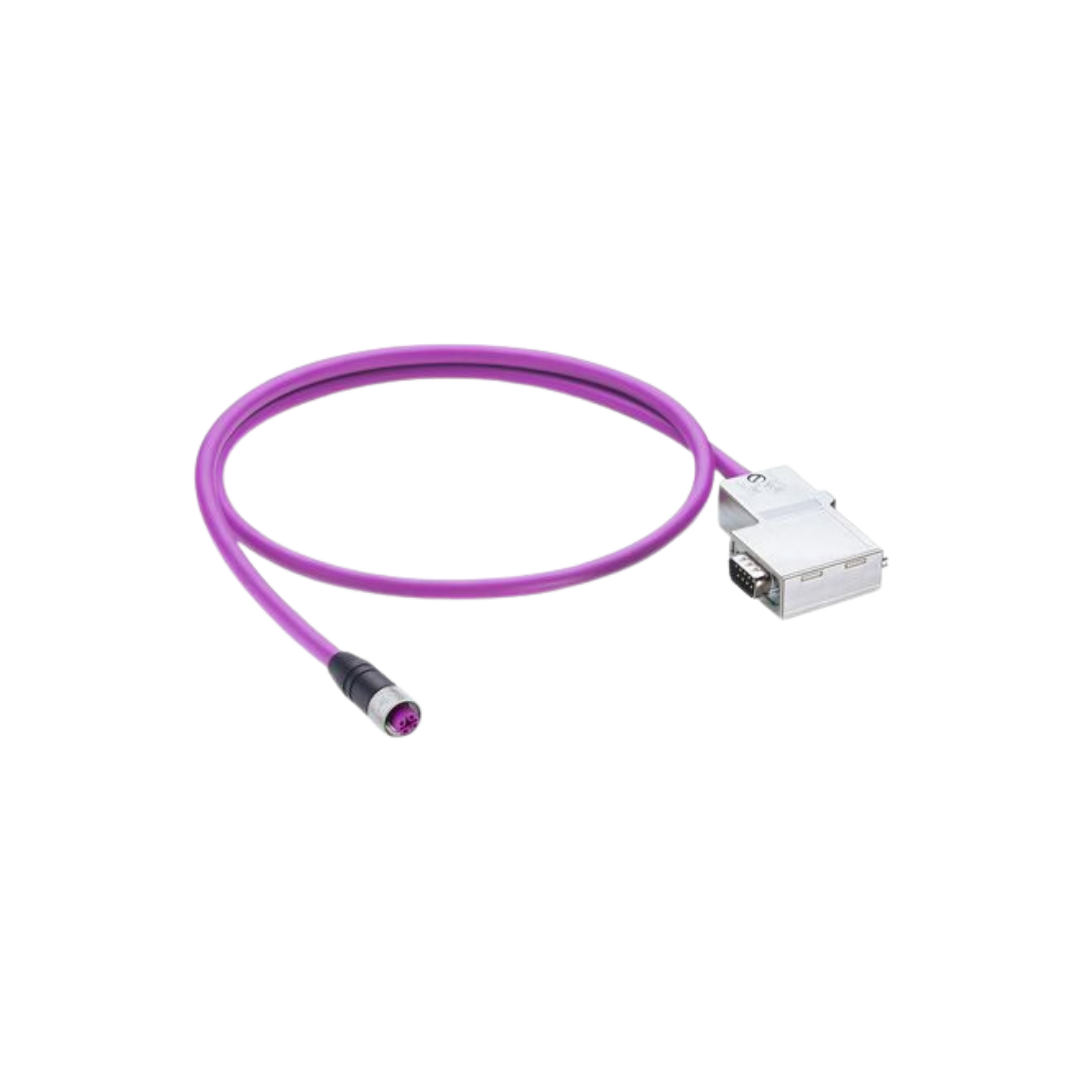

PROFIBUS Data Double-Ended Cordset
The PROFIBUS Data Double-Ended Cordset is designed for robust data communication. It features a male straight B-coded black M12 standard connector to a male angled SUB-D-coded SUB-D connector. The shielded cable is made from PUR in violet color, encapsulating 2 wires of 0.34 mm² each. Operating within a voltage range of +4.75 to +5.25 V DC, and a current rating of 12.5 mA, this cordset ensures efficient data transfer for PROFIBUS applications. It has a high resistance to electromagnetic interference and mechanical stress, making it suitable for industrial automation systems. The cable length varies from 0.3m to 75m, providing flexibility in installation while maintaining signal integrity even in harsh environments. The connectors comply with IP65/IP67 protection ratings, ensuring durability and reliability.
€167.29
per item
0935 253 109/6 M
CANopen / DeviceNet Data Double-Ended Cordset
The CANopen / DeviceNet Data Double-Ended Cordset is engineered for reliable data transmission and connectivity in demanding environments. Featuring a male straight A-coded black M12 Standard connector on both ends, this cordset is suitable for applications requiring up to 50 V AC / 60 V DC and 4 A of current. The cable is constructed with a PUR black jacket and has four wires, with data wires sized at 2x0.25 mm² and power wires at 2x0.34 mm², ensuring both robust data transfer and power delivery. The connectors' design ensures low contact resistance (< 10 mOhm) and high insulation resistance (> 10^9 Ohm), making it ideal for industrial automation systems that utilize CANopen or DeviceNet protocols. Additionally, with an IP rating of IP65, IP67, IP68, and IP69K, and a wide operating temperature range from -40 °C to +80 °C, this cordset offers excellent protection against environmental factors, ensuring longevity and performance.
€65.39
per item
RSTS 8X-RJ45 G-478/20 M
Gigabit Ethernet Cat7 Data Double-Ended Cordset
The Gigabit Ethernet Cat7 Data Double-Ended Cordset is a high-performance cable designed for reliable and high-speed data transfer. Featuring a male straight X-coded black M12 Standard connector on one end and a male straight RJ45-coded black RJ45 connector on the other, this shielded cordset ensures robustness and secure connections. Rated for 30 V AC / 42 V DC and 0.5 A, the cable is constructed with PUR black material and includes 8 wires (4x2x0.14 mm²). The double-ended cordset supports Gigabit Ethernet Cat7 with a data transmission rate of up to 10 Gbit/s, making it ideal for industrial and commercial applications where high data integrity and transmission speeds are essential.
€178.39
per item
0935 253 103/1,8 M
CANopen / DeviceNet Data Double-Ended Cordset
CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to female straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
€40.62
per item
0985 342 104/40 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for high-speed data transmission, making it an essential component in industrial applications. It features a male straight D-coded black M12 Standard connector to a male straight RJ45-coded black RJ45 Field Attachable connector. The cordset is shielded and supports 30 V AC / 42 V DC, 1.5 A, ensuring superior signal integrity and minimal interference. Its robust PUR green cable with four wires (2x2x0.34 mm²) offers excellent durability and flexibility under harsh conditions.
Benefits of this product include reliable fast Ethernet Cat5e data transmission at 100 Mbit/s, resistance to oil and chemicals, flame retardancy, and superior mechanical performance with an operating temperature range from -40°C to +90°C for the M12 side and -40°C to +70°C for the RJ45 side. The product also meets various standards including IP65, IP67, IP69K for the M12 side, and IP20 for the RJ45 side, ensuring protection against dust and water ingress when mated.
Applications of this cordset include industrial automation, machine building, robotics, and other environments that demand robust and reliable Ethernet connections. Its design conforms to IEC 61076-2-101 and IEC 60603-7 standards, making it an excellent choice for ensuring high-performance data connectivity in challenging industrial environments.
€292.43
per item
